X8 series electrical knockout enclosure

This heavy duty consumer unit enclosure features a hinged door and opens up a vast variety of IoT, IIoT and industry 4.0 applications for the X series. Having the door on a hinge transforms a standard enclosure into something more, allowing the housing to be used as an electrical distibution product, utilising the DIN rail capabilities. Available in either ABS or polycarbonate, with a solid or transparent lid.

Key features:

Hood avoids moisture sitting on the seal whilst lid is closed

X series IP67 heavy duty enclosure

Hinged lid
with latches

X series IP67 heavy duty enclosure

Available in a wide range of sizes

X series IP67 heavy duty enclosures

Ideal for use as an industrial
IoT hub

X series IP67 heavy duty enclosure

Accessories:

Vents (available in two sizes)

X serieds IP67 heavy duty enclosure

Steel mounting plate

X series IP67 heavy duty enclosure

Integral locks

X series IP67 heavy duty enclosure

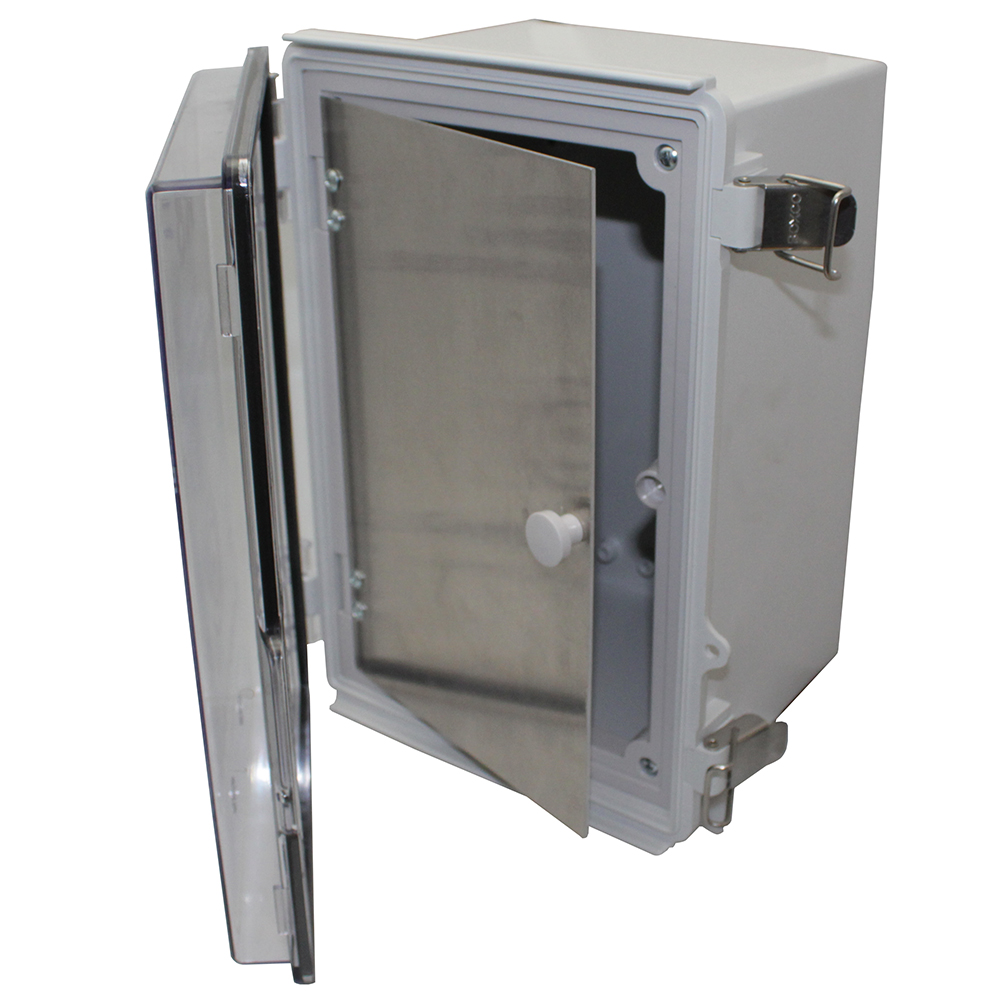

Dual door kit

X series IP67 heavy duty enclosure

Polycarbonate

 Solid lid Clear lid Length Width Height Product detail
CHDX8-221 CHDX8-221C 260mm 110mm 75mm Find out more
CHDX8-222 CHDX8-222C 260mm 110mm 100mm Find out more
CHDX8-223 CHDX8-223C 185mm 135mm 85mm Find out more
CHDX8-224 CHDX8-224C 185mm 135mm 100mm Find out more
CHDX8-225 CHDX8-225C 220mm 170mm 110mm Find out more
CHDX8-226 CHDX8-226C 270mm 170mm 110mm Find out more
CHDX8-227 CHDX8-227C 300mm 200mm 150mm Find out more
CHDX8-228 CHDX8-228C 300mm 200mm 180mm Find out more
CHDX8-229 CHDX8-229C 210mm 210mm 100mm Find out more
CHDX8-230 CHDX8-230C 350mm 250mm 180mm Find out more
CHDX8-231 CHDX8-231C 300mm 300mm 180mm Find out more
CHDX8-232 CHDX8-232C 400mm 300mm 180mm Find out more
CHDX8-233 CHDX8-233C 500mm 400mm 200mm Find out more
CHDX8-234 CHDX8-234C 630mm 530mm 255mm Find out more
CHDX8-235 CHDX8-235C 830mm 630mm 185mm Find out more
CHDX8-236 CHDX8-236C 830mm 630mm 285mm Find out more



ABS

Solid lid  Clear lid Length Width Height Product details
CHDX8-321 CHDX8-321C 260mm 110mm 75mm Find out more
CHDX8-322 CHDX8-322C 260mm 110mm 100mm Find out more
CHDX8-323 CHDX8-323C 185mm 135mm 85mm Find out more
CHDX8-324 CHDX8-324C 185mm 135mm 100mm Find out more
CHDX8-325 CHDX8-325C 220mm 170mm 110mm Find out more
CHDX8-326 CHDX8-326C 270mm 170mm 110mm Find out more
CHDX8-327 CHDX8-327C 300mm 200mm 150mm Find out more
CHDX8-328 CHDX8-328C 300mm 200mm 180mm Find out more
CHDX8-329 CHDX8-329C 210mm 210mm 100mm Find out more
CHDX8-330 CHDX8-330C 350mm 250mm 180mm Find out more
CHDX8-331 CHDX8-331C 300mm 300mm 180mm Find out more
CHDX8-332 CHDX8-332C 400mm 300mm 180mm Find out more
CHDX8-333 CHDX8-333C 500mm 400mm 200mm Find out more
CHDX8-334 CHDX8-334C 630mm 530mm 255mm Find out more
CHDX8-335 CHDX8-335C 830mm 630mm 185mm Find out more
CHDX8-336 CHDX8-336C 830mm 630mm 285mm Find out more

View our full range of X8 Series enclosures or call our experienced technical sales team to discuss your requirements on 01638 716101. Alternatively please complete the enquiry form below or email sales@camdenboss.com.



You can view the complete X series range here.
