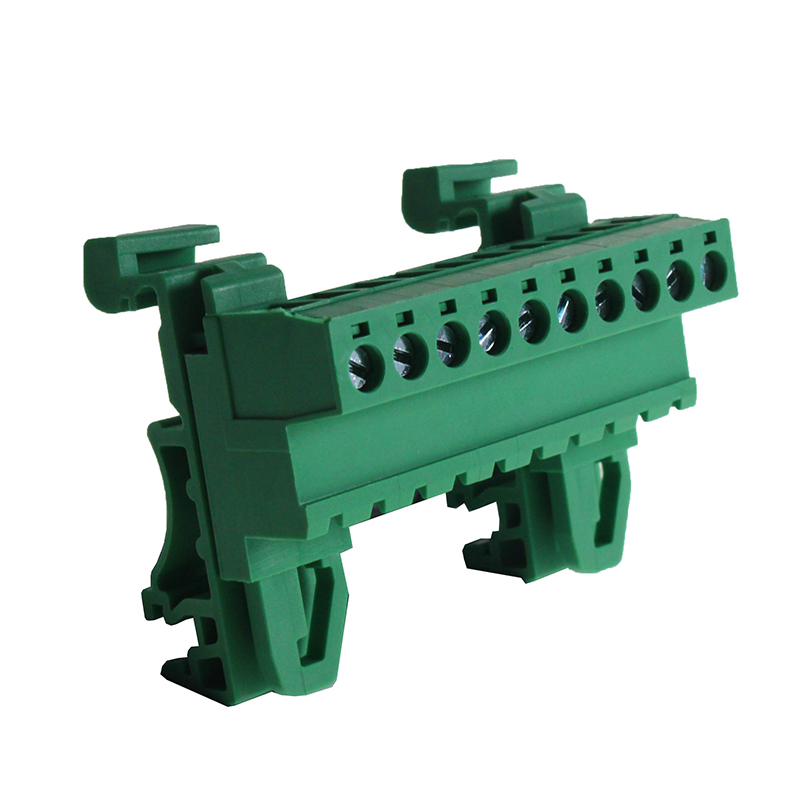

CTBPD96HJ/10 - DIN Rail Mount Pluggable Terminal Block 10 pole
5.08mm DIN Rail Mount Horizontal Male Terminal Block 10 Pole
- Horizontal & vertical orientations
- Polarized moldings
- Can be reversed on DIN clips
- Also available in 5mm pitch
- Molded in green UL94-V0 flame retardant PA 66
- 2.5mm2 (28-14AWG)
- UL Approved
- 6-12 poles standard
| External Length (mm) | 52.2 |
| External Width (mm) | 42 |
| External Height (mm) | 31.5 |
| Weight (G) | 22.3 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| Orientation | Horizontal |
| Pitch (mm) | 5.08 |
| CE Approval | Yes |
| UL Approval | Yes |
| Cable Size (AWG) | 28 to 14 |
| Cable Entry Solid Wire (mm2) | 1.5 |
| Cable Entry Stranded Wire (mm2) | 1.5 |
| No. of Poles | 10 |
| DIN Rail Mounting | Yes |
3D Step Drawing
