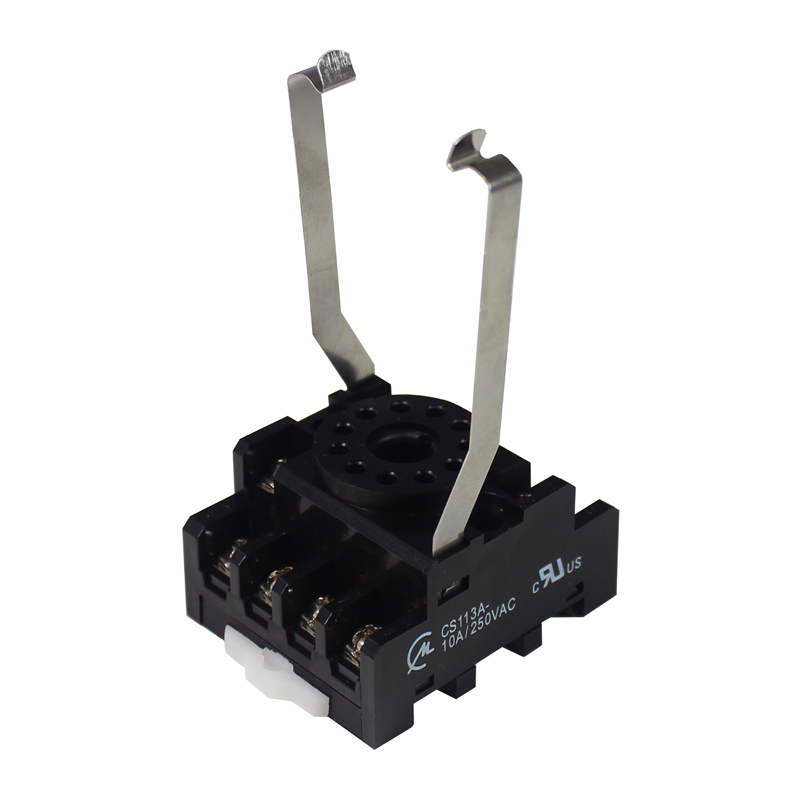

CS113AN
11-pin open Commercial Relay Base with IP20 finger protection
- DIN rail (EN50022) or chassis screw mounting
- Screw driver release DIN clip
- Rising saddle terminals for ease of wire insertion
- 2 x 2.5mm2 cable acceptance
- 2 x 1.5mm2 bootlace crimp
- IP20 finger protection types
- Relay retaining clip accessory
- Tubular contacts for reliability
- Terminal numbering to DIN 46199
| External Length (mm) | 50.7 |
| External Width (mm) | 42.3 |
| External Height (mm) | 30.9 |
| Weight (G) | 50 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 10 |
| UL Voltage Rating (V) | 250 |
| No. of Poles | 11 |
| Mounting Type | Chassis |
3D Step Drawing
