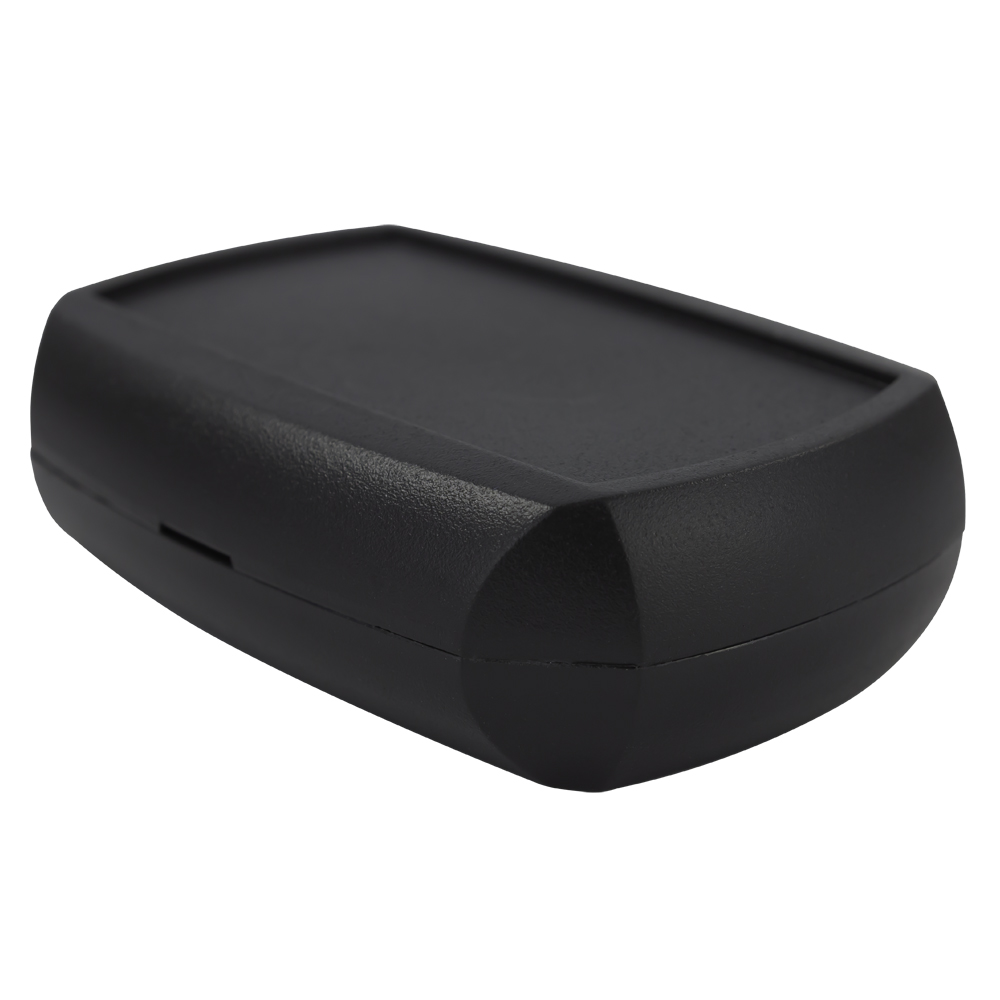

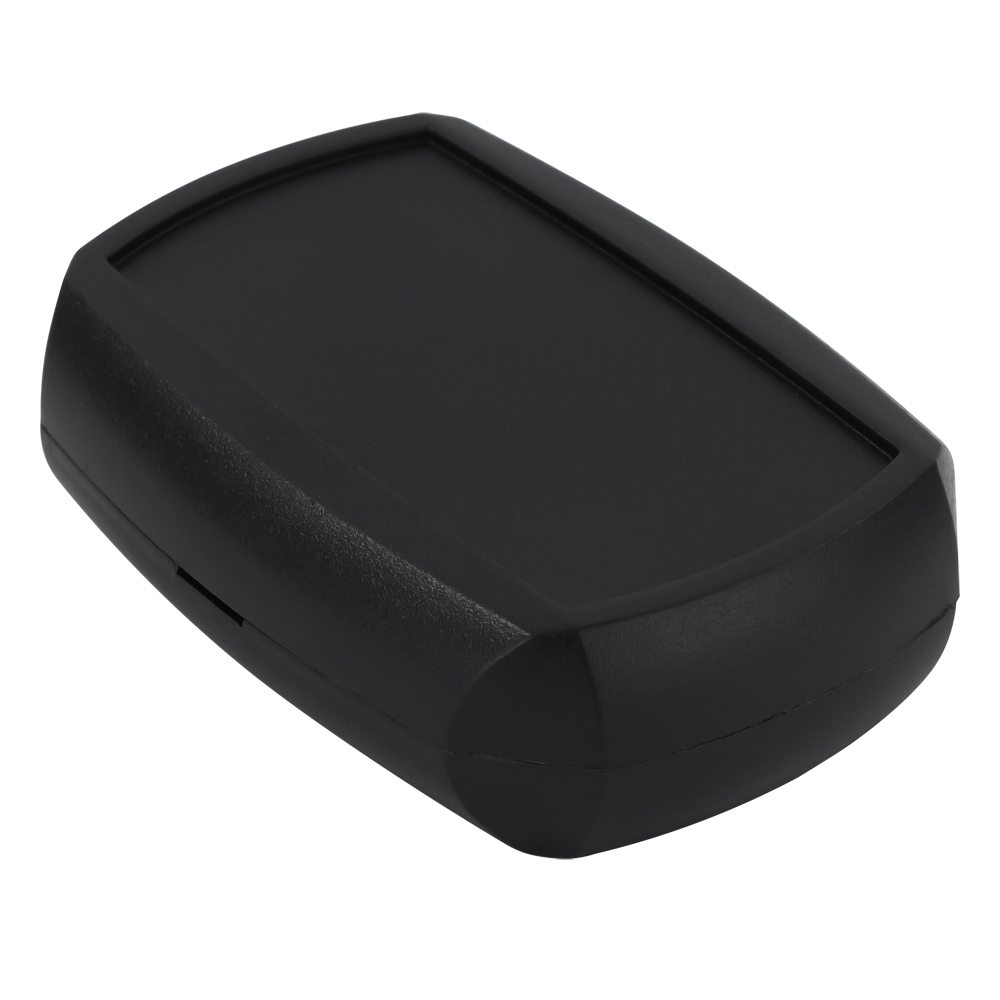

CHH623BLK - 62 Series Ergonomic Keyfob Enclosure, Black, ABS UL94-V0, 70x50x20mm
The 62 series is an ergonomic keyfob styled enclosure with recesses for for overlays and keypad membranes. Available with or without a key ring lug
- Contemporary range of small robust hand-held boxes with bevelled and rounded edges
- Moulded in high impact ABS
- Snap-fit assembly
- Recesses in lid and base for membrane keypads or overlays
- Excellent properties for machining
- Key-ring lug style available
- 62 series has been designed to meet the requirements of IP54
- Or additionally, IP65 with the optional gasket accessory
| External Length (mm) | 70 |
| External Width (mm) | 50 |
| External Height (mm) | 20 |
| Internal Length (mm) | 57 |
| Internal Width (mm) | 33 |
| Internal Height (mm) | 13 |
| Weight (G) | 25 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Black |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP62 |
| Brand | CamdenBoss |
| Size | 70 x 50 x 20 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
