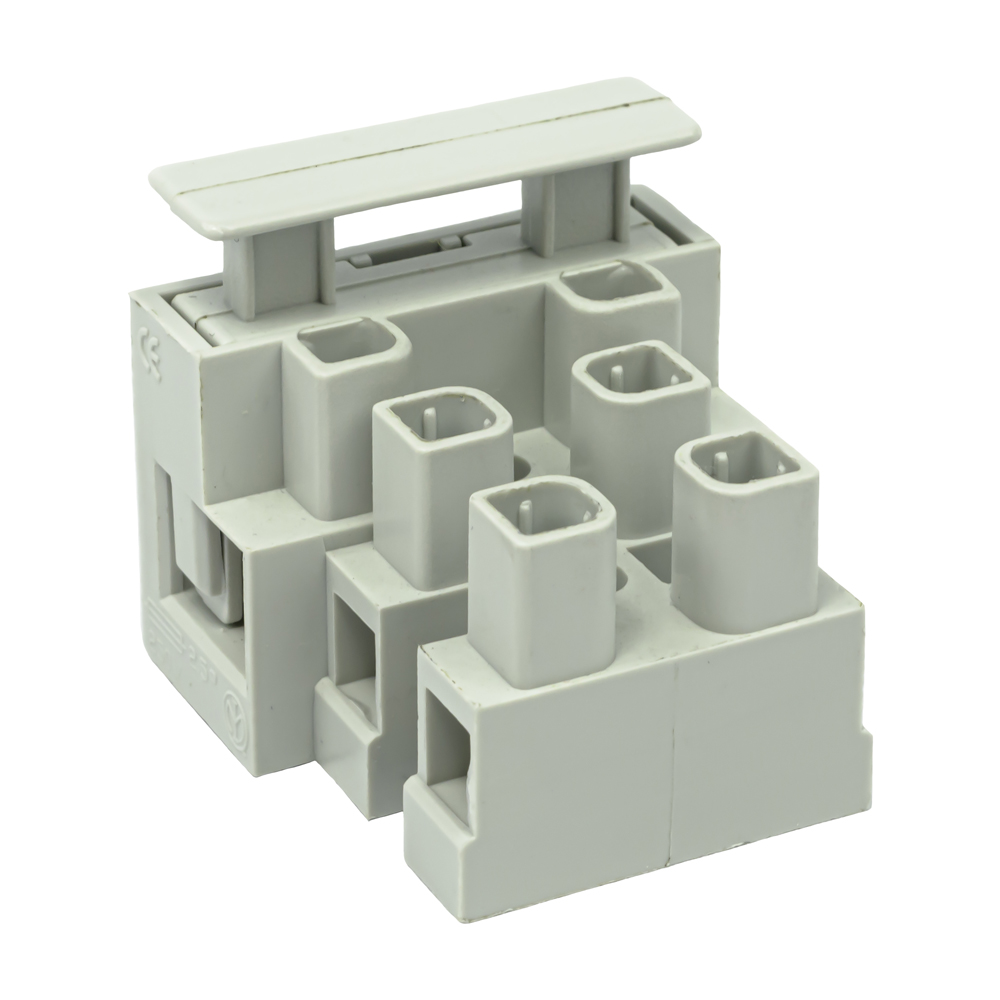

CFTBN/3 - 5x20mm Fused Terminal Block
3 Pole 5x20mm Fused Terminal Block
- 3 pole terminal strip with 5x20mm fuseholder to IEC257
- Integral spare fuse carrier
- Interlocking fuseholder with CFTBN/1
- Anti rotation spigot
- IP20 finger protection
- Cable entry 4mm2 (2.5mm2 with wire protector)
- Wire protector on fuse terminal as standard
- Meets creepage and clearance requirements of IEC (8mm)
- 16mm fixing pitch
- UL, CE approved
| External Length (mm) | 30 |
| External Width (mm) | 28 |
| External Height (mm) | 22 |
| Weight (G) | 14 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Grey |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 13 |
| UL Current Rating (A) | 13 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 6.3 |
| VDE Voltage Rating (V) | 250 |
| Max Wire size (mm) | 25 |
| Operating Temperature | -20 Deg C to 125 Deg C |
| No. of Poles | 3 |
| Earth Screw | Yes |
