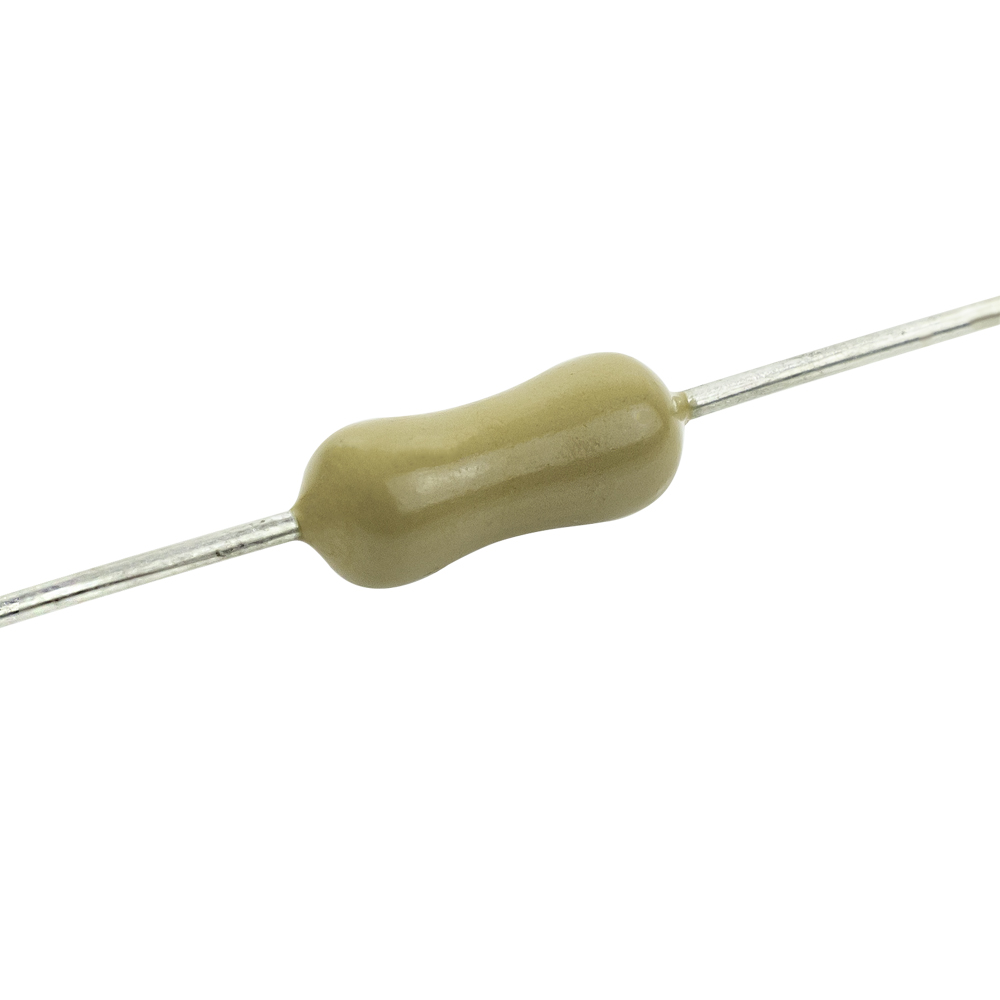

CFB2470FF/3 - 2.4x7mm Axial Fuse
CamFuse Plus, 2.4x7mm Micro Miniature Very Fast Acting Axial Fuses, 3A
- Very fast acting
- Bandoliered
- Break capacity 50A/125VAC-100mA-3A 35A/125VAC-3.15A-7A 100A/125VAC-1A-5A
- UL, TUV Approved
| External Length (mm) | 7 |
| External Width (mm) | 2.4 |
| External Height (mm) | 2.4 |
| Weight (G) | 0.28 |
| Base Material | Ceramic |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 125 |
| VDE Current Rating (A) | 3 |
| VDE Voltage Rating (V) | 125 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | FAST |
| UL Approval | Yes |
| Fuse Size | 2.4 x 7 |
| Body Shape | Axial Leaded |
3D Step Drawing
