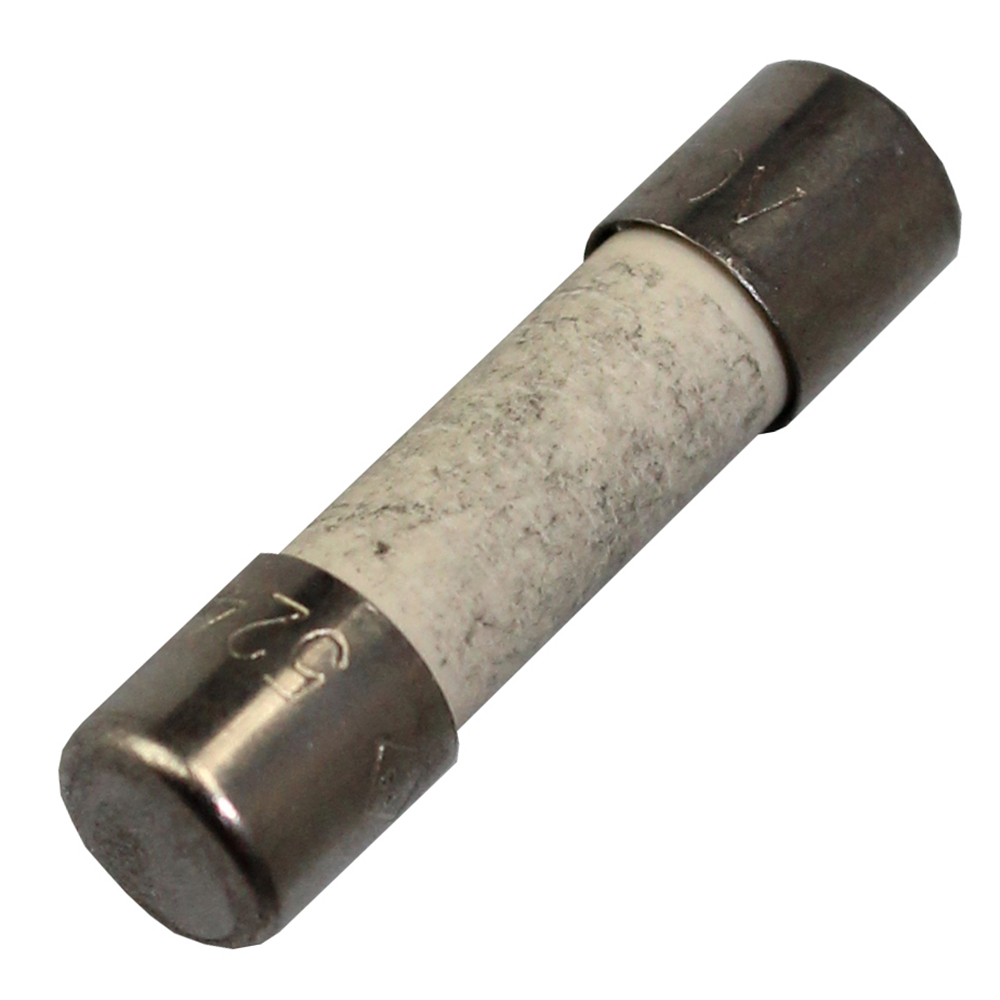

CFB0521CT/1 - 5x20mm Fuse
CamFuse Plus 5x20mm, Time Delay, Ceramic Fuse, 1A
- Time delay (T) IEC60127
- Excellent I2T characteristics
- Welded element for enhanced vibration tolerance
- Ceramic cartridge, nickel plated brass end caps
- Sand filled
- UL, VDE, CCC, PSE Approved
| External Length (mm) | 20 |
| External Width (mm) | 5 |
| External Height (mm) | 5 |
| Weight (G) | 1 |
| Base Material | Ceramic |
| General Current Rating (A) | 1 |
| UL Current Rating (A) | 1 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 1 |
| VDE Voltage Rating (V) | 250 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | SLOW |
| UL Approval | Yes |
| VDE Approval | Yes |
| CCC Approval | Yes |
| Fuse Size | 5 x 20 |
| Body Shape | Tube |
3D Step Drawing
