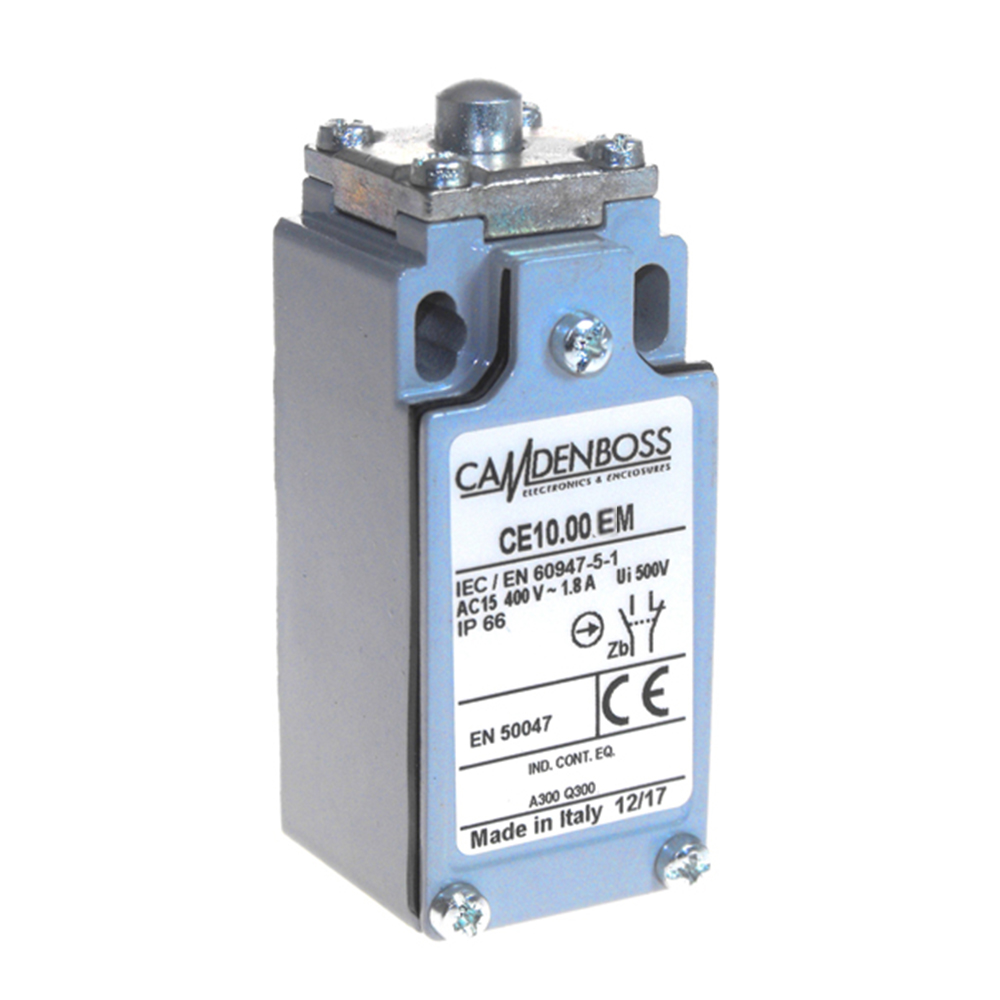

CE10.00.EM/50 - Limit Switch
30mm Wide Limit Switch, IP66 Metal Casing, Rubber Roller Lever
- 30mm width
- Double insulated plastic to IP65
- Metal casing to IP66
- Snap action contacts
- UL, IMQ Approved
| External Length (mm) | 30 |
| External Width (mm) | 30 |
| External Height (mm) | 108 |
| Weight (G) | 21.8 |
| Base Material | Metal |
| Colour | Grey |
| IP Rating | IP66 |
| General Current Rating (A) | 240 |
| UL Current Rating (A) | 240 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Roller lever, nylon |
3D Step Drawing
