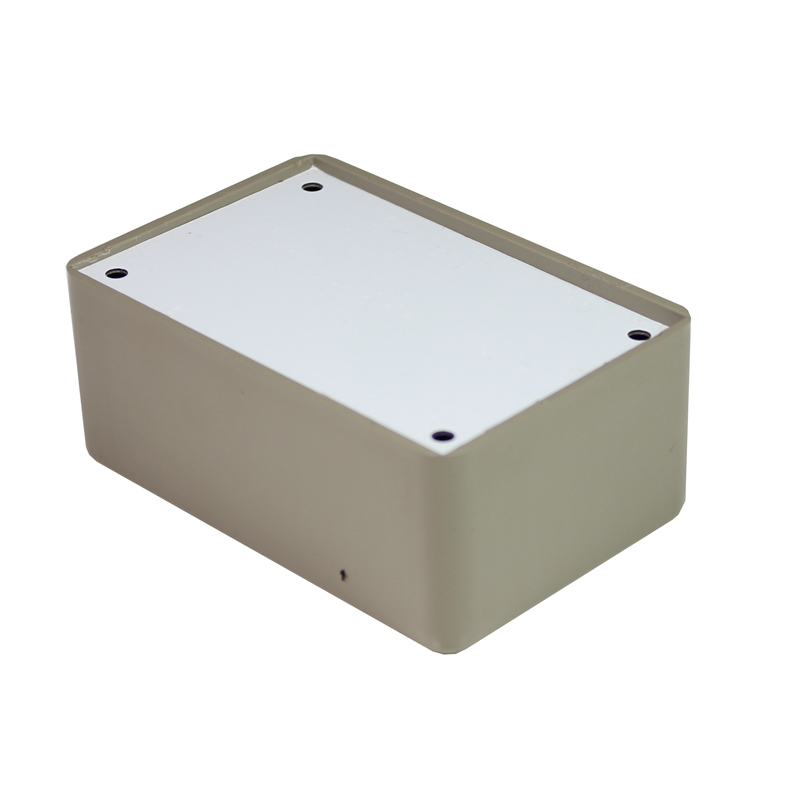

BIM4003-GY/PG - 4000 Series Panel Lid Electronic Housing, Grey, ABS UL94-HB, 85x56x35mm

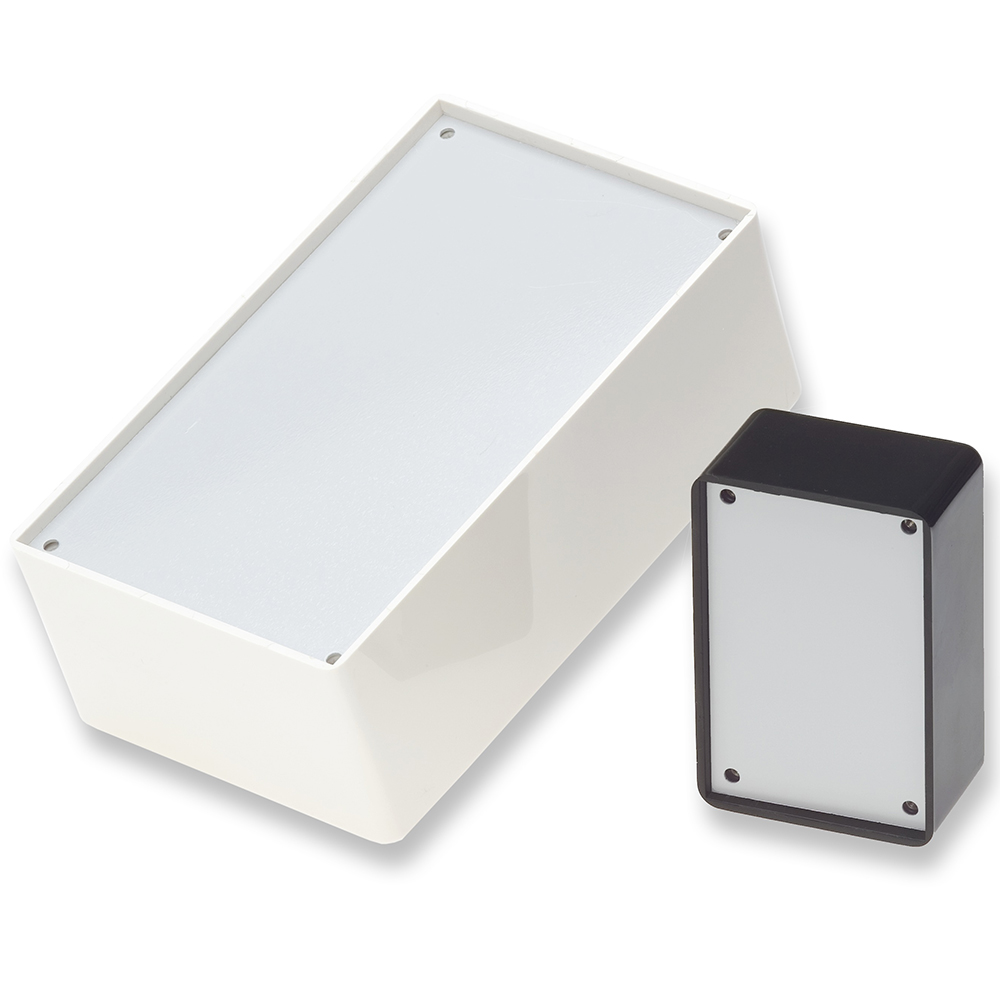

4000 Series panel lid desktop ABS enclosure, black with aluminium lid. Ideal to house industrial electronics. Manufactured in the UK.

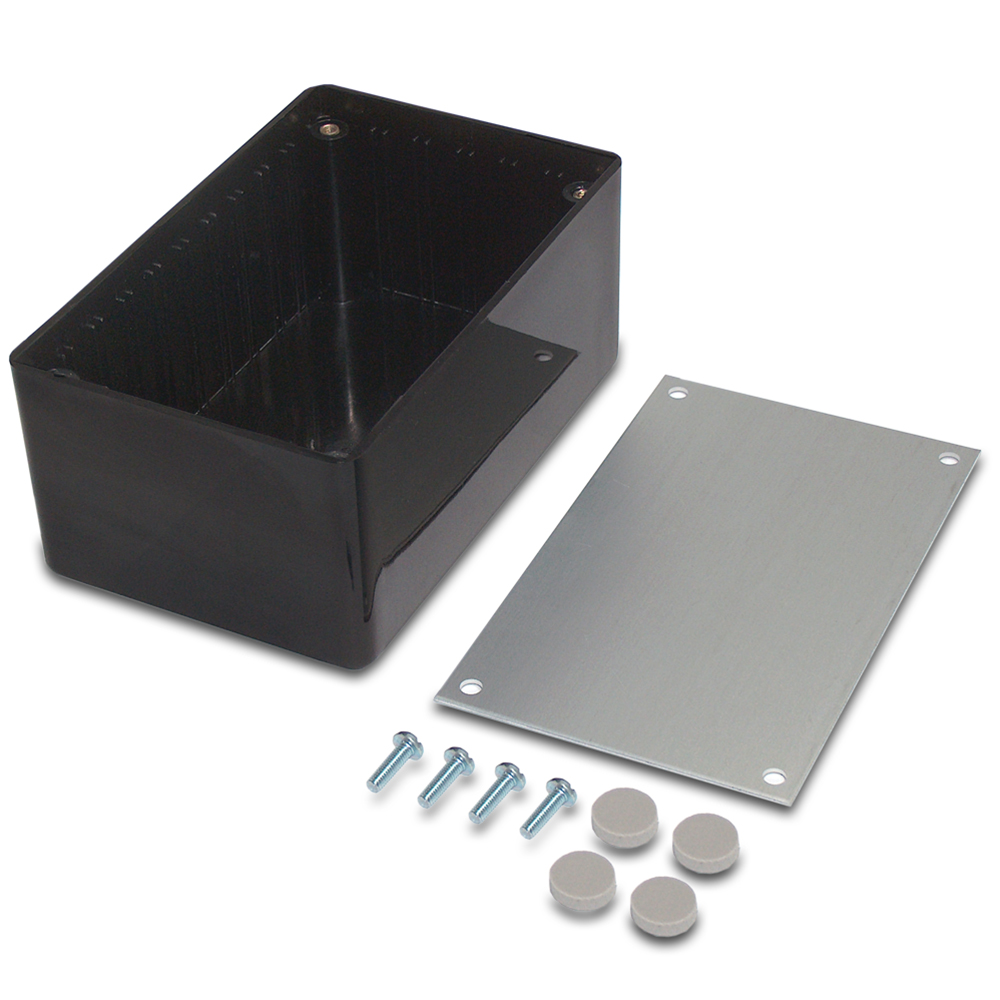

- ABS boxes with recessed lid, designed for easy customisation of aluminium lid
- Grey aluminium lid mounted by four M3 machine screws
- Brass inserts in base for repeated removal of the lid
- Polished finish for ease of cleaning
- Rubber feet provided as standard
- Both the lid and box have excellent properties for machining
- Integral mounting guides to accept 1.6mm PCB's
- 4000 series has been designed to meet the requirements of IP54
| External Length (mm) | 85 |
| External Width (mm) | 56 |
| External Height (mm) | 35 |
| Internal Length (mm) | 81 |
| Internal Width (mm) | 52 |
| Internal Height (mm) | 27 |
| Weight (G) | 52 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 85 x 56 x 35 |
| Development Board | N/A |
| Country Of Origin | Great Britain (GB) |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
